products
product features

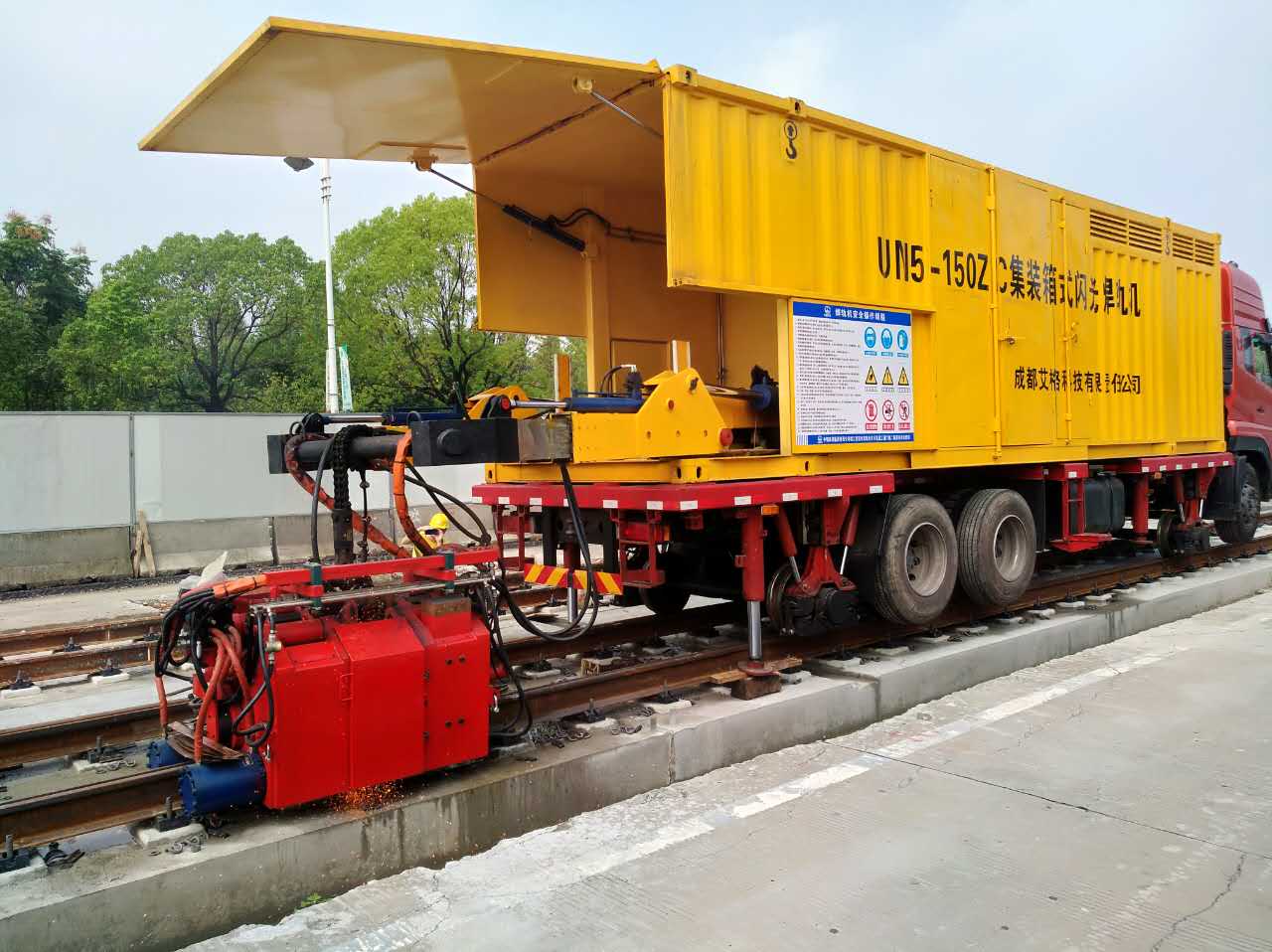

multi-functional welding machine suitable for groove rail and common rail welding. the quality and efficiency of the welding are guaranteed by the use of the combination electrode and the company’s patented production of special knob removing tool.
main technical parameters
maximum welding distance(mm):120
maximum welding sectional area(mm²):10000
rated upset force(kn):750
clamping force(kn):1900
total weight(kg):24000
overall dimension (length *width *height) :
standard twin box 6000*2500*2500mm
7m single box 7270*2668*2438mm
9m single box 9103*2656*2438mm
application of rail type
channel rail : 51r1, 52r1, 53r1, 55g1, 55g2, 59r1, 59r2, 60r1, 60r2, 60r3, 62r1, 62r2, 76c1, etc.
common rail: 43kg/m, 50kg/m, 60kg/m, 75kg/m, bs80, bs90, uic50, uic60, etc. |
